DC-LINK capacitor

▲Applications

  The DC link capacitor plays a DC support role in DC-link circuit of converter. Applied to wind powerconverter ,  solar energy inverter,  high-power fan converter,  high-voltage inverter,  active filter,  DCpower transmission and so on. It completely replaces the same kind of imported products and completelyreplaces aluminum electrolytic capacitors, and is free from replacement and maintenance, with high safetyand reliability.

▲Technical characteristics

   DC support capacitors are made of high-quality metallized polypropylenefilms which are green,  environmentally friendly, safe, and energy-saving . Theyhave large  capacity, small volume, and large ripple current tolerance, withperformance of low ESR, long life, high reliability, and simple to install, cost-performance and other advantages.

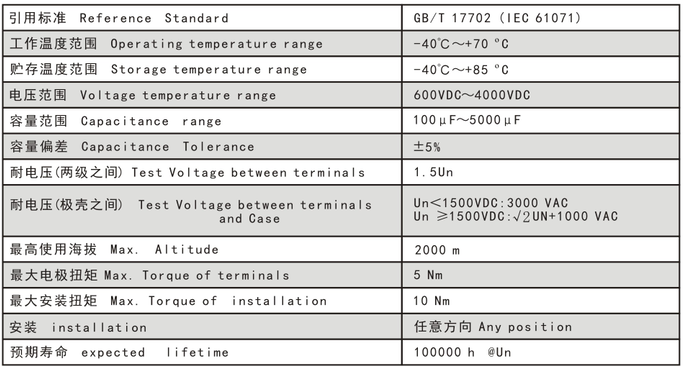

◆Electrical characteristics

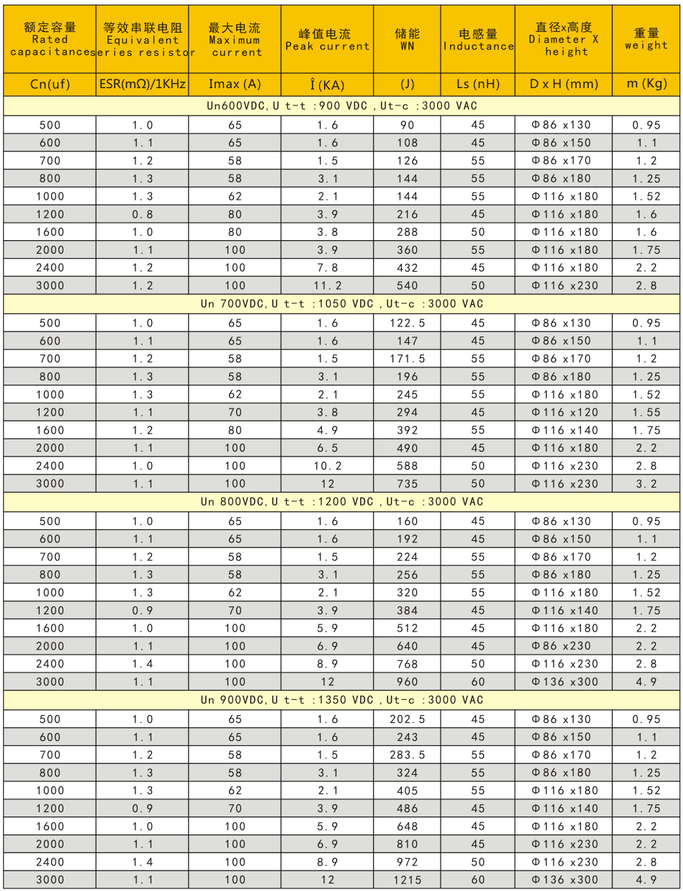

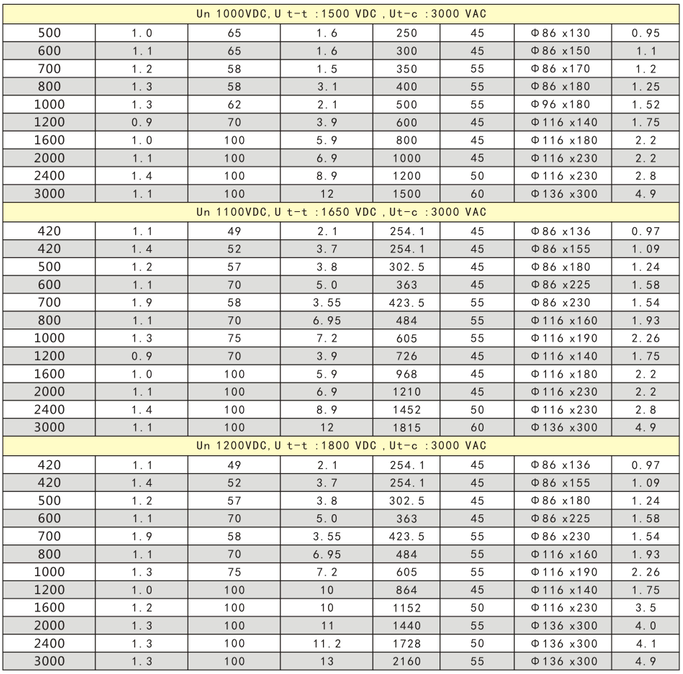

◆Technical parameters

 Note: The size in above table is for your reference, we can provide customized products special designed as request.Following types can be chosen: Type A has a negative plug with screw bolt on bottom; Type B has negative plug with flatbottom; Type C has a positive plug with a screw bolt at the bottom; Type D has positive plug with flat bottom.

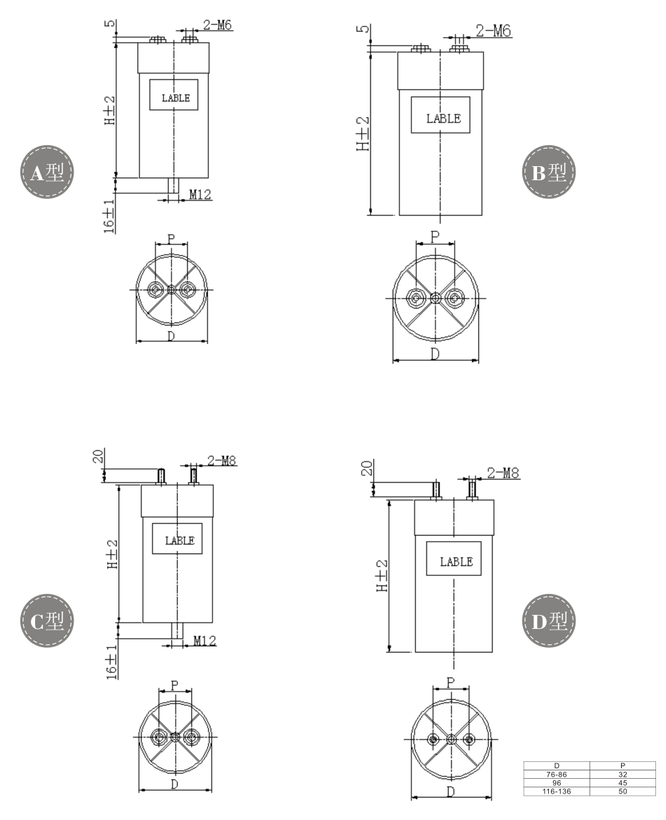

Typical Drawing:
